Butt-Weld Fittings (ASME B16.9)

Sizes and Types of Fittings:

  1. Elbows (Long Radius and Short Radius)

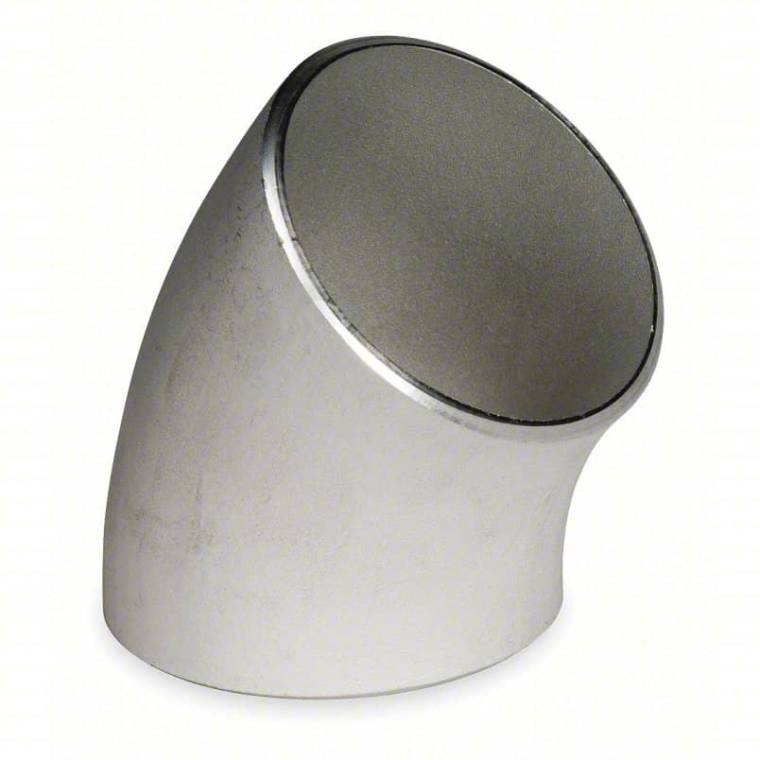

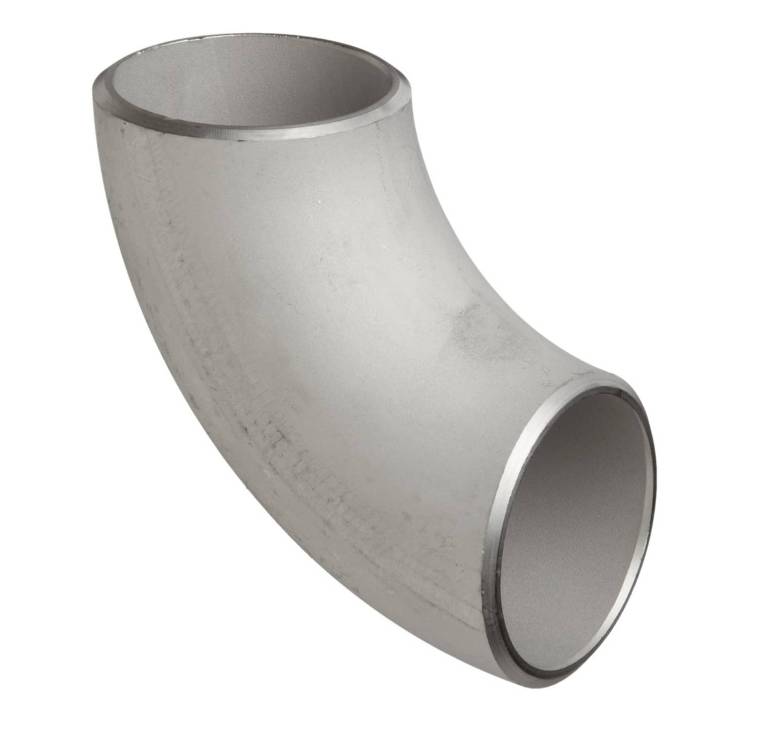

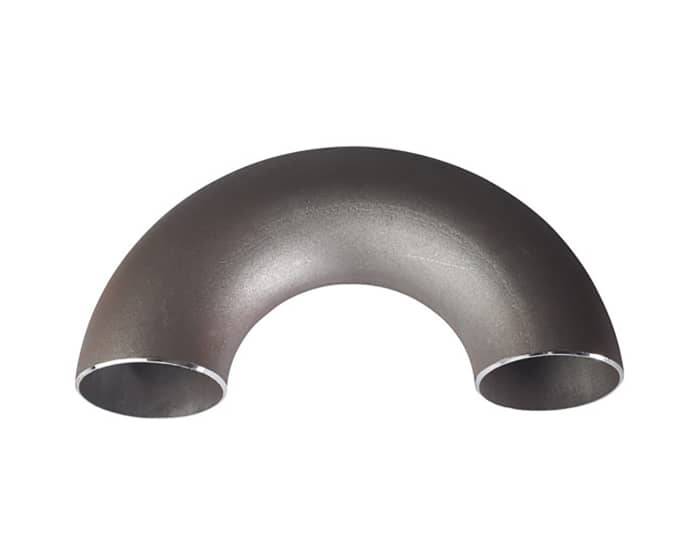

    Angles: 45°, 90°, and 180° return bends.
    Available Sizes: ¼” to 14”
    View Detailed Sheet
  1. Reducers (Concentric & Eccentric)
    Available Sizes: ½” to 24”
  2. Tees
    Available Sizes: ¼” to 32”
  3. Caps
    Available Sizes: ¼” to 24”
  4. Stub Ends
    Available Sizes: ½” to 12”
  5. Crosses
    Available Sizes: ¼” to 32”

Thickness (Schedules):

  • Schedule 5
  • Schedule 10
  • Schedule 40 (STD)
  • Schedule 80 (XS)
  • Schedule 160
  • Schedule XXH

Available Materials:

  1. Carbon Steels:
    WPB, WPC, A105, A106 Gr. B & C, 4130, 4140
    Material Grades: A234 WPB, A106 Gr. B & C, A333 Gr. 6, A420 WPL6, A350 LF2, LF3
  2. Stainless Steels:
    304/304L, 309, 310, 316/316H/316L, 317/317L, 321/321H, 347/347H
    Duplex (2205/F51), Super Duplex (2507/F53), 254SMO, Ferralium 255, 410/410S, 430, 446
    Material Grades: A312 (304, 304L, 316, 316L, 321), A403 (304, 304L, 316, 316L, 317, 347), A815 (Duplex 2205, Super Duplex 2507)
  3. Nickel & Nickel Alloys:
    A200, A201, A400, A600, A601, A625, A800/800H/800HT, A825, 904L
    A330, AL6XN, A20, B-2, C-276, C-22
    Material Grades: Inconel 600, 625, 718, Monel 400, Hastelloy C276, C22
  4. Aluminum:
    5086, 6061-T6
    Material Grades: ASTM B211 (5086, 6061)
  5. Copper & Copper/Nickel Alloys:
    90/10, 70/30, Brass (A360), Bronze
    Material Grades: C12200, C70600
  6. Chrome & Chrome Alloy Steel:
    P5, P9, P91, P11, P22
    Material Grades: ASTM A182 (F5, F9, F11, F22)
  7. Low Temperature Steels:
    WPL6 (LF2), WPL3 (LF3)
    Material Grades: ASTM A350 LF2
  8. High-Yield Steels:
    Y42 to Y70
    Material Grades: Y42 to Y70
  9. Special Alloys:
    Titanium, Zirconium, Beryllium (available upon request)
    Material Grades: Specific grades available upon request

Dimensional Standard for Butt-Weld Fittings:

The dimensional standard for butt-weld fittings is ASME B16.9, which covers the dimensions, tolerances, and markings for wrought butt-welding fittings like elbows, tees, reducers, and caps. This standard ensures compatibility and consistency in fitting dimensions across various piping systems.
